BUILDING NEW FRAME FOR PLOW TRUCK

It takes a serious machine to plow up here in the woods and not get stuck; 4WD, reinforced tire chains on all 4 wheels, and a concrete block in the back.  Here is Doug Stone from Where You Are Welding (802) 785-2140, helping me build a new rear frame in February, 2003 for my Jeep J20 plow truck.  The frame was completely rotted and had broken behind the cab.

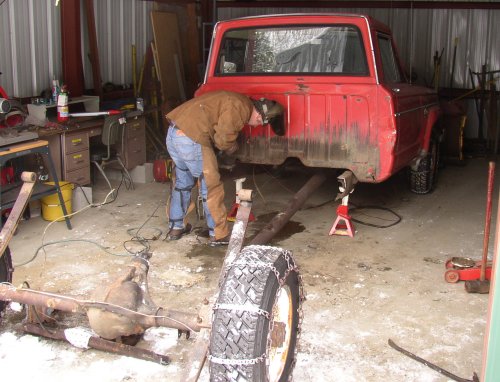

  cut off the old rusty frame

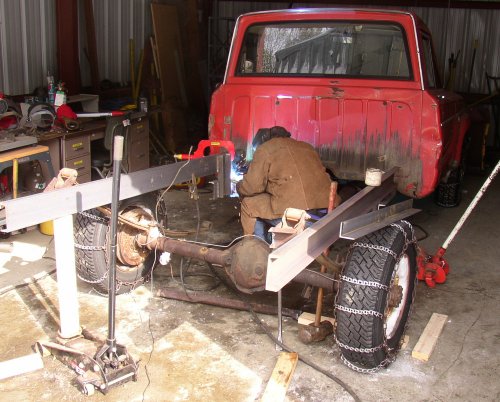

  start welding on the new rails

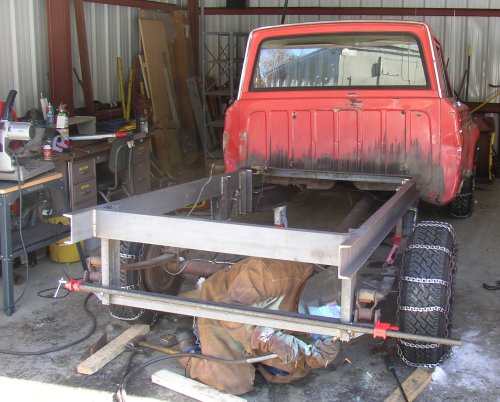

  building up the frame and reattaching the springs

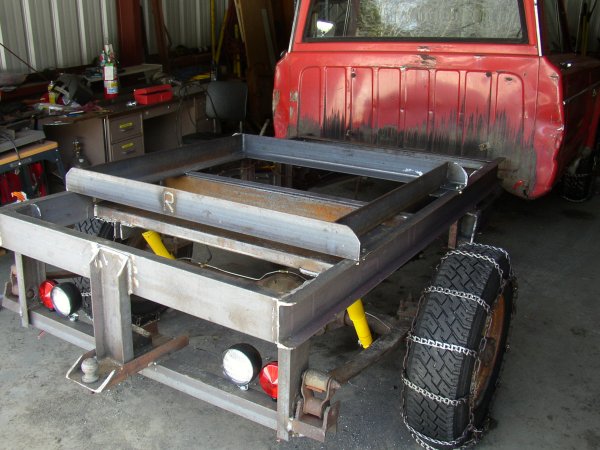

  all done!  New lights, new shocks, new steel.  Very nice.

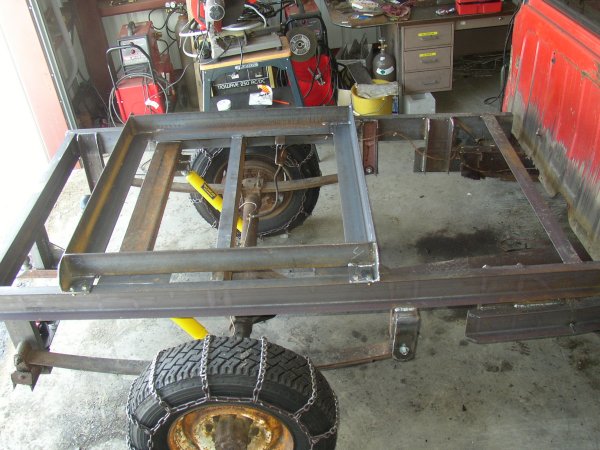

  top view.  Frame in center is to hold 1200 pound concrete block for traction.

March 2, 2003 - I used this for plowing for the first time since rebuilding it - it works GREAT!
